When upgrading your car’s audio system, understanding how to wire speakers properly can make the difference between mediocre sound and an impressive audio experience. The two primary wiring methods—series and parallel—each offer distinct advantages and drawbacks that can significantly impact your sound quality, power distribution, and overall system performance.

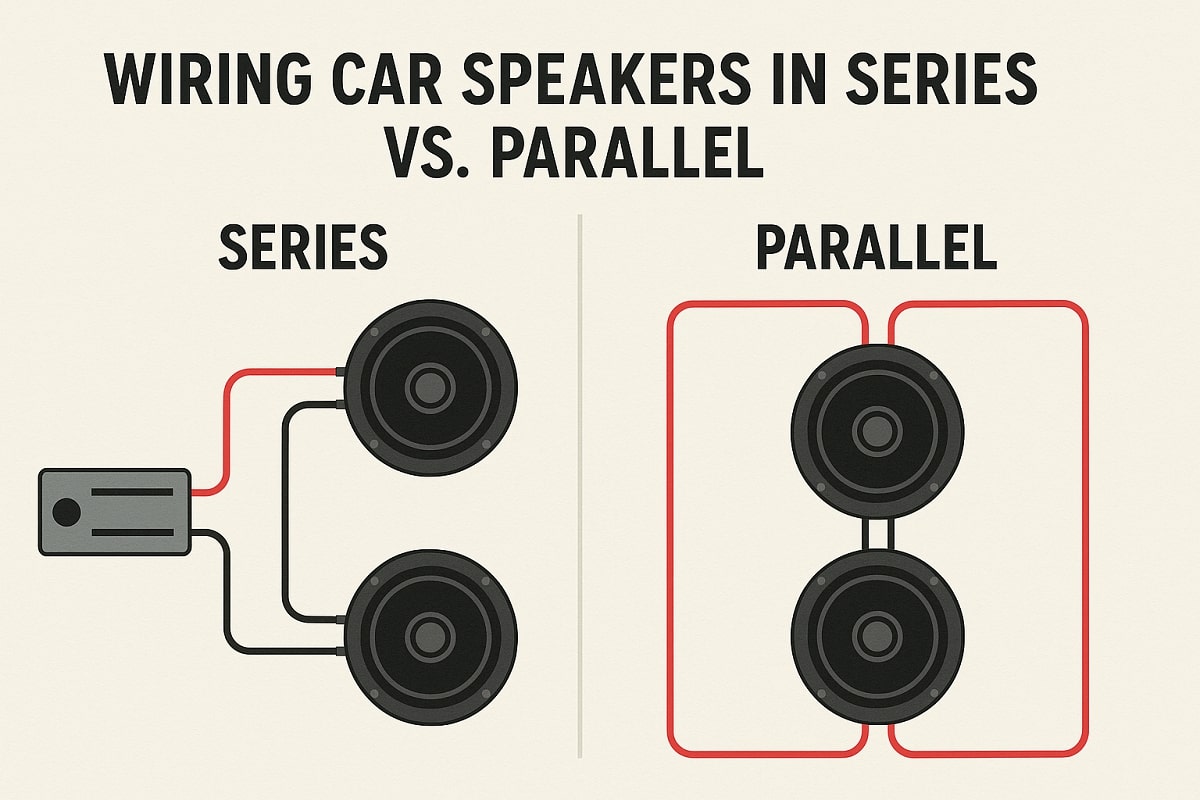

Understanding Speaker Wiring Basics
Before diving into the comparison, it’s essential to understand what series and parallel wiring actually mean in the context of car audio systems.
Speaker impedance (measured in ohms) is the resistance a speaker presents to the electrical current from your amplifier or head unit. Most car speakers come with impedances of 4 ohms, 8 ohms, or occasionally 2 ohms.
The way you wire multiple speakers together affects the total impedance your amplifier sees, which directly impacts power delivery, sound quality, and system compatibility.
Series Wiring Explained
In series wiring, speakers are connected end-to-end in a chain-like fashion. The positive terminal of the first speaker connects to the negative terminal of the second speaker, and so on, with the amplifier connecting to the remaining positive and negative terminals at each end of the chain.
How Series Wiring Affects Impedance
When speakers are wired in series, their impedances add together. For example:
- Two 4-ohm speakers in series = 8 ohms total
- Three 4-ohm speakers in series = 12 ohms total
- Four 4-ohm speakers in series = 16 ohms total
Advantages of Series Wiring
Amplifier Protection: Higher total impedance means less current draw, reducing the risk of overheating your amplifier or head unit.
Cost-Effective: You can connect multiple speakers to a single amplifier channel without additional equipment.
Safer for Equipment: The reduced current flow makes it less likely you’ll damage your audio equipment.
Disadvantages of Series Wiring
Reduced Power Output: Higher impedance typically results in less power being delivered to the speakers, potentially reducing maximum volume.
Uneven Power Distribution: If one speaker has different characteristics or fails, it can affect the performance of all speakers in the series chain.
Limited Control: You cannot independently control the volume or characteristics of individual speakers.
Parallel Wiring Explained
In parallel wiring, all positive terminals connect together, and all negative terminals connect together, creating multiple paths for the electrical current to flow simultaneously.
How Parallel Wiring Affects Impedance
When speakers are wired in parallel, the total impedance decreases according to this formula: 1/Total Impedance = 1/Speaker1 + 1/Speaker2 + 1/Speaker3…
For identical speakers:
- Two 4-ohm speakers in parallel = 2 ohms total
- Three 4-ohm speakers in parallel = 1.33 ohms total
- Four 4-ohm speakers in parallel = 1 ohm total
Advantages of Parallel Wiring
Maximum Power Delivery: Lower total impedance allows more current to flow, potentially increasing power output and volume.
Independent Operation: Each speaker operates independently, so if one fails, others continue working normally.
Better Sound Quality: Each speaker receives the full voltage signal, potentially resulting in better overall sound reproduction.
Disadvantages of Parallel Wiring
Amplifier Stress: Very low impedances can cause amplifiers to overheat or shut down if they’re not designed to handle such loads.
Equipment Requirements: May require more powerful amplifiers or additional equipment to handle the lower impedance safely.
Cost Considerations: Might necessitate upgrading your amplifier or head unit to handle the increased current demands.
Series vs. Parallel: Power Output Comparison
The power output comparison isn’t straightforward, as it depends heavily on your amplifier’s specifications and design.
Most car amplifiers are rated for specific impedance loads (typically 4 or 8 ohms). Operating outside these specifications can result in:
- Reduced power output
- Increased distortion
- Potential equipment damage
- Shortened component lifespan
Series Wiring Power Output: Generally provides less power per speaker but operates within safer parameters for most factory head units and basic amplifiers.
Parallel Wiring Power Output: Can provide more total power but requires amplifiers capable of handling lower impedance loads safely.
Sound Quality Considerations
Sound quality differences between series and parallel wiring are often subtle but can be significant in certain scenarios.
Series Wiring Sound Quality:
- May experience slight volume reduction
- Can exhibit phase issues if speakers are mismatched
- Generally provides adequate sound for most casual listeners
Parallel Wiring Sound Quality:
- Typically offers fuller, more dynamic sound
- Each speaker operates at optimal conditions
- Better frequency response and clarity
- More suitable for audiophile applications
Compatibility with Car Audio Systems
Factory Head Units: Most factory head units are designed for 4-8 ohm loads. Series wiring is generally safer and more compatible with stock systems.
Aftermarket Head Units: Many aftermarket units can handle lower impedances, making parallel wiring more feasible.
External Amplifiers: Professional amplifiers often specify minimum impedance ratings. Always check your amplifier’s specifications before choosing a wiring method.
Practical Installation Tips
Tools Needed
- Wire strippers
- Electrical tape or heat shrink tubing
- Multimeter (to verify impedance)
- Quality speaker wire
- Wire nuts or proper connectors
Safety Precautions
- Always disconnect the battery before working on electrical systems
- Use proper gauge wire for your current requirements
- Ensure all connections are secure and insulated
- Test the system at low volumes initially
Common Mistakes to Avoid
- Mixing different speaker impedances
- Using inadequate wire gauge
- Creating loose connections
- Ignoring amplifier impedance ratings
- Skipping the testing phase
When to Choose Series Wiring
Choose series wiring when:
- Using a factory head unit or basic amplifier
- Installing speakers in different zones (front/rear)
- Working with older audio equipment
- Priority is equipment protection over maximum power
- Budget constraints limit amplifier upgrades
When to Choose Parallel Wiring
Choose parallel wiring when:
- Using high-quality aftermarket amplifiers
- Maximum power output is the goal
- Installing a competition or high-performance system
- Each speaker can be independently controlled
- Your amplifier is rated for lower impedance loads
Hybrid Approaches and Advanced Configurations
For complex systems with multiple speakers, you might consider:
Series-Parallel Combinations: Wiring some speakers in series, then connecting these series groups in parallel. This approach can balance power distribution and impedance matching.
Individual Amplification: Using separate amplifier channels for each speaker, providing maximum control and quality.
Bi-Amping: Connecting separate amplifiers to different frequency ranges of the same speaker for enhanced sound quality.
Troubleshooting Common Issues
Low Volume Output:
- Check impedance compatibility
- Verify all connections are secure
- Test individual speakers for failures
Distorted Sound:
- Ensure amplifier isn’t overloaded
- Check for impedance mismatches
- Verify proper wire gauge usage
One Speaker Not Working:
- In series: Check all connections, as one failure affects all
- In parallel: Test the specific speaker and its connections
Cost Analysis
Series Wiring Costs:
- Lower initial investment
- Compatible with existing equipment
- Minimal additional hardware needed
Parallel Wiring Costs:
- May require amplifier upgrades
- Higher quality components recommended
- Potential for better long-term value
Making the Right Choice for Your System
The decision between series and parallel wiring ultimately depends on your specific requirements, existing equipment, and audio goals.
For Casual Listeners: Series wiring often provides adequate performance with existing equipment and lower risk.
For Audio Enthusiasts: Parallel wiring, combined with appropriate amplification, typically delivers superior sound quality and performance.
For Budget-Conscious Installers: Series wiring allows system expansion without major equipment upgrades.
Professional Installation vs. DIY
While both wiring methods can be DIY projects, consider professional installation if:
- Working with expensive equipment
- Unsure about amplifier compatibility
- Installing complex multi-zone systems
- Want warranty protection
Conclusion
Both series and parallel speaker wiring have their place in car audio systems. Series wiring offers simplicity, equipment protection, and compatibility with standard systems, while parallel wiring provides maximum power output and superior sound quality with appropriate equipment.
The best choice depends on your specific situation, including your current equipment, budget, sound quality requirements, and technical expertise. Consider starting with series wiring if you’re unsure, as it’s generally safer for your equipment and can be easily modified later as your system evolves.
Remember that proper installation, quality components, and appropriate impedance matching are more important than the wiring method itself. When in doubt, consult with a professional car audio installer who can assess your specific system and recommend the optimal configuration.
Frequently Asked Questions (FAQs)
Q: Can I mix series and parallel wiring in the same car audio system?
A: Yes, you can use series-parallel combinations in complex systems. For example, you might wire pairs of speakers in series, then connect these pairs in parallel to the amplifier. This approach can help balance impedance loads and power distribution.
Q: What happens if I wire speakers with different impedances together?
A: Mixing different impedances can cause uneven power distribution and potentially damage speakers. In series, the speaker with higher impedance will receive more power. In parallel, the lower impedance speaker will draw more current. It’s best to use speakers with matching impedances.
Q: How do I calculate the total impedance for multiple speakers?
A: For series wiring, add all impedances together (4Ω + 4Ω = 8Ω). For parallel wiring, use the formula: 1/Total = 1/Speaker1 + 1/Speaker2… For two identical speakers in parallel, divide the impedance by 2 (4Ω ÷ 2 = 2Ω).
Q: Can parallel wiring damage my factory head unit?
A: Potentially yes. Most factory head units are designed for 4-8 ohm loads. Parallel wiring reduces total impedance, which can cause the head unit to overheat or shut down. Check your head unit’s specifications before using parallel wiring.
Q: Which wiring method is better for subwoofers?
A: For subwoofers, parallel wiring is often preferred because it allows more power delivery for better bass response. However, ensure your amplifier can handle the resulting low impedance load. Many subwoofer amplifiers are specifically designed for 1-2 ohm loads.
Q: Do I need special wire for parallel connections?
A: Not necessarily, but you may need thicker gauge wire for parallel connections since they carry more current. Also, ensure you use quality connectors that can handle multiple wire connections safely.
Q: How can I test which wiring method sounds better in my car?
A: Start by testing both configurations at low volumes with familiar music. Listen for differences in clarity, bass response, and overall volume. Use a multimeter to verify impedance calculations and ensure your amplifier isn’t overheating during testing.
Q: Is it worth upgrading my amplifier just to use parallel wiring?
A: It depends on your audio goals and budget. If you’re satisfied with your current sound quality, series wiring with your existing equipment might be sufficient. However, if you want maximum performance and plan other system upgrades, investing in a quality amplifier for parallel wiring can be worthwhile.
Q: Can weather affect my speaker wiring connections?
A: Yes, moisture and temperature changes can affect connections over time. Ensure all connections are properly insulated with electrical tape or heat shrink tubing, and use quality connectors designed for automotive applications. Regular inspection of connections is recommended.
Q: What’s the minimum wire gauge I should use for speaker wiring?
A: For most car speaker applications, 16-gauge wire is sufficient for shorter runs (under 20 feet). For longer runs or high-power applications, consider 14-gauge or even 12-gauge wire. Parallel wiring configurations may benefit from thicker wire due to higher current demands.
