Speakers are complex devices that transform electrical signals into the sound we hear. Whether you’re interested in upgrading your home audio system, troubleshooting speaker issues, or simply curious about how speakers work, understanding the different parts is crucial.

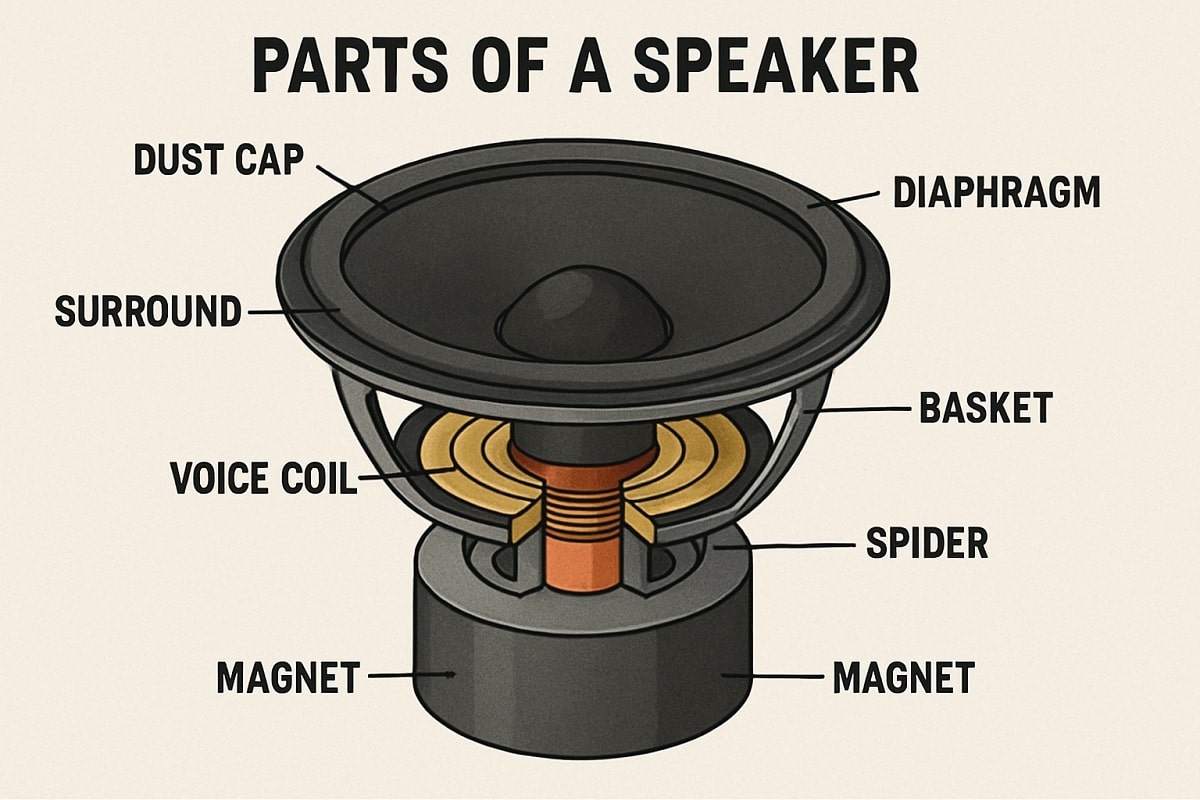

Core Speaker Components
1. Drivers
The drivers are perhaps the most critical components of any speaker. These are the parts that actually produce sound by converting electrical energy into mechanical energy, which creates sound waves.
Types of drivers include:
- Woofers: Large drivers (typically 5-15 inches) designed to reproduce low-frequency sounds (bass). They handle frequencies roughly between 40Hz and 1kHz.
- Tweeters: Small drivers (usually 1 inch or less) that reproduce high-frequency sounds between 2kHz and 20kHz, giving you the crisp highs in music.
- Midrange drivers: Medium-sized drivers that handle frequencies between woofers and tweeters (approximately 500Hz to 4kHz), reproducing vocals and most instruments.
- Subwoofers: Specialized drivers designed exclusively for very low bass frequencies (typically below 100Hz).
2. Voice Coil
The voice coil is a wire wound around a bobbin that sits in the magnetic field of the permanent magnet. When electricity flows through this coil, it creates a magnetic field that interacts with the permanent magnet, causing the coil to move back and forth.
3. Cone or Diaphragm
Attached to the voice coil, the cone (or diaphragm) is the part that moves air to create sound waves. Different materials are used for cones, including:
- Paper (traditional, warm sound)
- Polypropylene (durable, consistent)
- Kevlar (rigid, detailed sound)
- Aluminum (lightweight, responsive)
- Carbon fiber (stiff, precise sound)
4. Dust Cap
Located at the center of the cone, the dust cap prevents dust and debris from entering the gap between the voice coil and magnet. It also contributes to the overall rigidity of the driver assembly.
5. Surround
The flexible ring that connects the outer edge of the cone to the basket, allowing the cone to move while maintaining proper alignment. Common materials include:
- Rubber (durable, good sound quality)
- Foam (lightweight, inexpensive)
- Cloth (used in some high-end designs)
6. Spider
The spider is a corrugated, flexible support that centers the voice coil in the magnetic gap and provides resistance to cone movement. It works with the surround to ensure linear movement of the cone.
7. Basket (Frame)
The rigid structure that holds all the driver components together. It needs to be sturdy yet non-resonant to avoid coloring the sound.
8. Magnet
The permanent magnet creates the magnetic field necessary for driver operation. Stronger magnets generally allow for better control and efficiency.
Speaker System Components
9. Enclosure (Cabinet)
The enclosure houses the drivers and significantly impacts sound quality by controlling how bass frequencies radiate. Types include:
- Sealed (tight, accurate bass)
- Ported (extended bass response)
- Bandpass (enhanced specific bass frequencies)
- Horn-loaded (increased efficiency)
10. Crossover Network
This electronic component divides the audio signal into different frequency ranges and sends them to the appropriate drivers. Crossovers can be:
- Passive (require no power, used in most home speakers)
- Active (powered, require separate amplification for each driver)
11. Terminals
Connection points where speaker wire from the amplifier attaches to the speaker. Quality terminals ensure good electrical contact for optimal sound transmission.
12. Bracing
Internal supports within the cabinet that reduce resonance and vibration, resulting in cleaner sound reproduction.
13. Damping Material
Acoustic foam or fiber filling placed inside the enclosure to absorb standing waves and reduce internal reflections that could color the sound.
14. Port or Vent (in ported designs)
A tube or opening in the enclosure that allows the speaker to produce deeper bass by using the rear wave of the woofer.
15. Grille
The protective cover over the front of the speaker that shields the drivers from damage while allowing sound to pass through.
Frequently Asked Questions (FAQs)
What is the most important part of a speaker?
While all components work together, the drivers (particularly the woofer) have the most significant impact on sound quality. The enclosure design is a close second, as it greatly influences bass response.
Do expensive speaker materials always sound better?
Not necessarily. Material choice involves tradeoffs—expensive materials like beryllium or diamond tweeters offer excellent performance but at a high cost. Well-designed speakers using more affordable materials can often provide excellent sound quality.
How do I know if a speaker component is damaged?
Signs of damage include visible tears in the cone or surround, rattling sounds, distortion at certain frequencies, or one speaker sounding different from another identical one. Visual inspection of the drivers can often reveal issues.
Can I replace individual speaker parts?
Yes, many speaker parts—particularly drivers, crossovers, and terminals—can be replaced. However, this requires technical skill and an understanding of the speaker’s design parameters.
What determines speaker efficiency?
Speaker efficiency (how loud a speaker plays with a given amount of power) is primarily determined by the driver design, magnet strength, and enclosure type. Horn-loaded speakers are typically more efficient than sealed designs.
How do wireless speakers differ in their components?
Wireless speakers contain additional components, including a wireless receiver, digital-to-analog converter (DAC), and often built-in amplification. Many also include digital signal processing (DSP) for sound optimization.
