What is a Mid-Range Driver?
A mid-range driver is a specialized speaker component designed to reproduce middle frequencies, typically ranging from 300 Hz to 4,000 Hz. This frequency range covers most human vocals, musical instruments like guitars and pianos, and crucial sonic details that define audio clarity and presence.

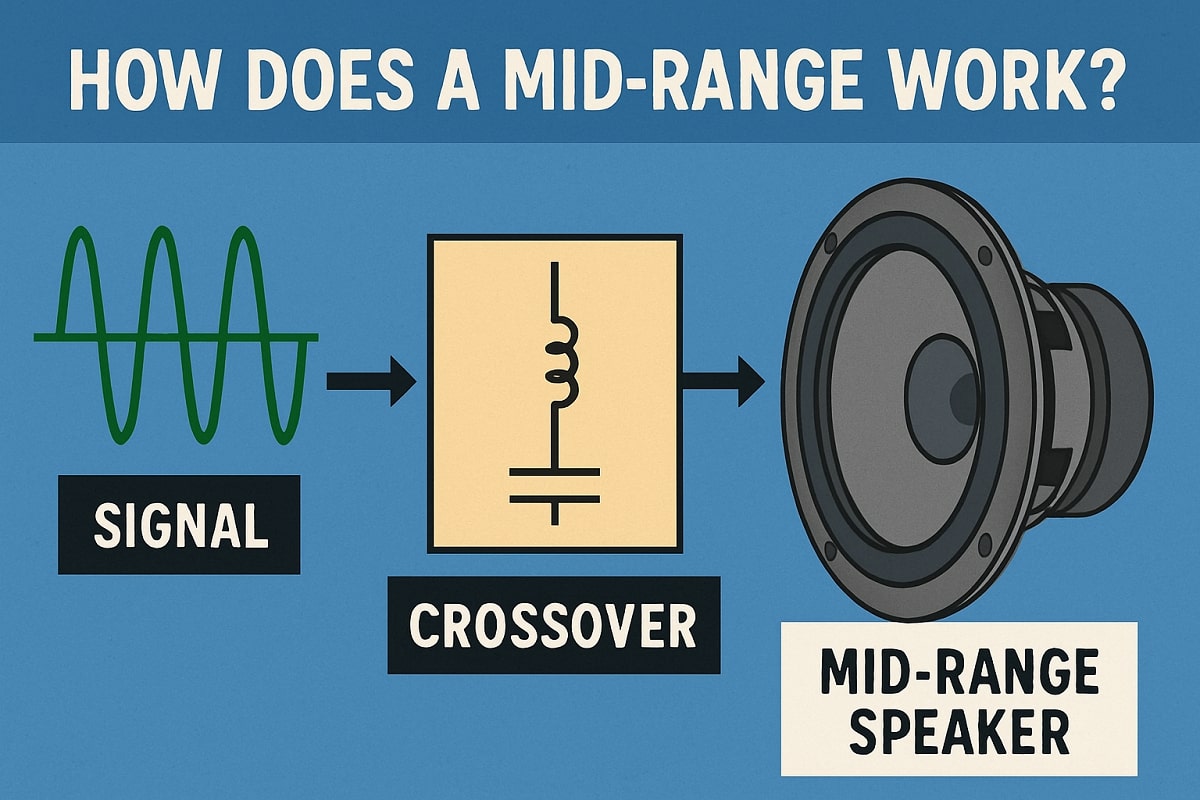

How Mid-Range Drivers Work: The Technical Process
Voice Coil and Magnetic Field Interaction
The fundamental operation of a mid-range driver relies on electromagnetic principles. When an electrical audio signal flows through the voice coil, it creates a magnetic field that interacts with the permanent magnet surrounding it. This interaction produces mechanical motion, converting electrical energy into sound waves.
Cone Movement and Sound Production
The voice coil is attached to a cone or dome-shaped diaphragm, typically made from materials like:
- Paper: Provides natural damping and warm sound characteristics
- Polypropylene: Offers durability and consistent performance
- Kevlar: Delivers excellent stiffness-to-weight ratio
- Aluminum: Provides precise high-frequency response
When the voice coil moves back and forth, it pushes and pulls the cone, displacing air molecules to create sound waves that reach our ears.
Frequency Response Characteristics
Mid-range drivers excel in the 300 Hz to 4 kHz range because their physical dimensions and materials are optimized for these frequencies. The cone size, typically between 4 to 8 inches in diameter, allows for:
- Efficient reproduction of vocal frequencies
- Clear presentation of instrumental harmonics
- Smooth transition between woofers and tweeters
Design Considerations for Optimal Performance
Crossover Integration
Mid-range drivers work in conjunction with crossover networks that:
- Filter out frequencies below 300 Hz (sent to woofers)
- Remove frequencies above 4 kHz (directed to tweeters)
- Ensure seamless frequency transitions
- Maintain proper phase relationships
Enclosure Design
The speaker cabinet or enclosure significantly impacts mid-range performance:
- Sealed enclosures: Provide tight, accurate sound reproduction
- Ported designs: Can extend low-frequency response
- Transmission line: Offers enhanced clarity and reduced distortion
Common Applications
Home Audio Systems
In home stereo systems, dedicated mid-range drivers are often found in:
- Three-way bookshelf speakers
- Floor-standing tower speakers
- High-end monitor speakers
- Professional studio monitors
Automotive Audio
Car audio systems frequently employ mid-range drivers for:
- Dashboard installations
- Door panel speakers
- Component speaker systems
- Custom audio builds
Performance Factors
Power Handling
Mid-range drivers typically handle 20-100 watts RMS, with power requirements depending on:
- Driver efficiency (measured in dB/W/m)
- Intended application
- System configuration
- Listening environment
Sensitivity Ratings
Most mid-range drivers exhibit sensitivity ratings between 85-95 dB/W/m, affecting:
- Volume levels at given power inputs
- Amplifier requirements
- Overall system efficiency
Troubleshooting Common Issues
Distortion Problems
Mid-range distortion often results from:
- Overpowering the driver
- Damaged voice coils
- Torn or damaged cones
- Improper crossover settings
Frequency Response Irregularities
Uneven mid-range response may indicate:
- Cabinet resonances
- Poor crossover design
- Driver positioning issues
- Room acoustics problems
Maintenance and Care
Regular Inspection
Proper mid-range driver maintenance includes:
- Visual inspection for cone damage
- Checking for loose connections
- Monitoring for unusual sounds
- Ensuring proper ventilation
Cleaning Procedures
Keep drivers performing optimally by:
- Gently dusting cone surfaces
- Avoiding moisture exposure
- Using compressed air for debris removal
- Professional servicing when needed
Future Developments
The mid-range driver technology continues evolving with:
- Advanced cone materials
- Improved magnetic structures
- Digital signal processing integration
- Wireless connectivity options
Frequently Asked Questions (FAQs)
What frequency range do mid-range drivers cover?
Mid-range drivers typically reproduce frequencies between 300 Hz and 4,000 Hz, though some extend slightly beyond these ranges depending on design and application.
Can I use a mid-range driver without a crossover?
While technically possible, using mid-range drivers without proper crossover networks can result in poor sound quality, potential damage, and inefficient frequency reproduction.
How do I know if my mid-range driver is damaged?
Common signs include distorted sound, rattling noises, visible cone damage, or complete absence of mid-frequency sounds during audio playback.
What’s the difference between mid-range drivers and full-range speakers?
Mid-range drivers are specialized for specific frequencies, while full-range speakers attempt to reproduce the entire audio spectrum with a single driver, often with compromises in performance.
How much power does a mid-range driver need?
Power requirements vary widely, typically ranging from 20-100 watts RMS, depending on driver efficiency, intended volume levels, and system configuration.
Can I replace just the mid-range driver in my speakers?
Yes, but ensure the replacement driver matches the original specifications including impedance, frequency response, and physical dimensions for optimal performance.
