What Are Coaxial Car Speakers?

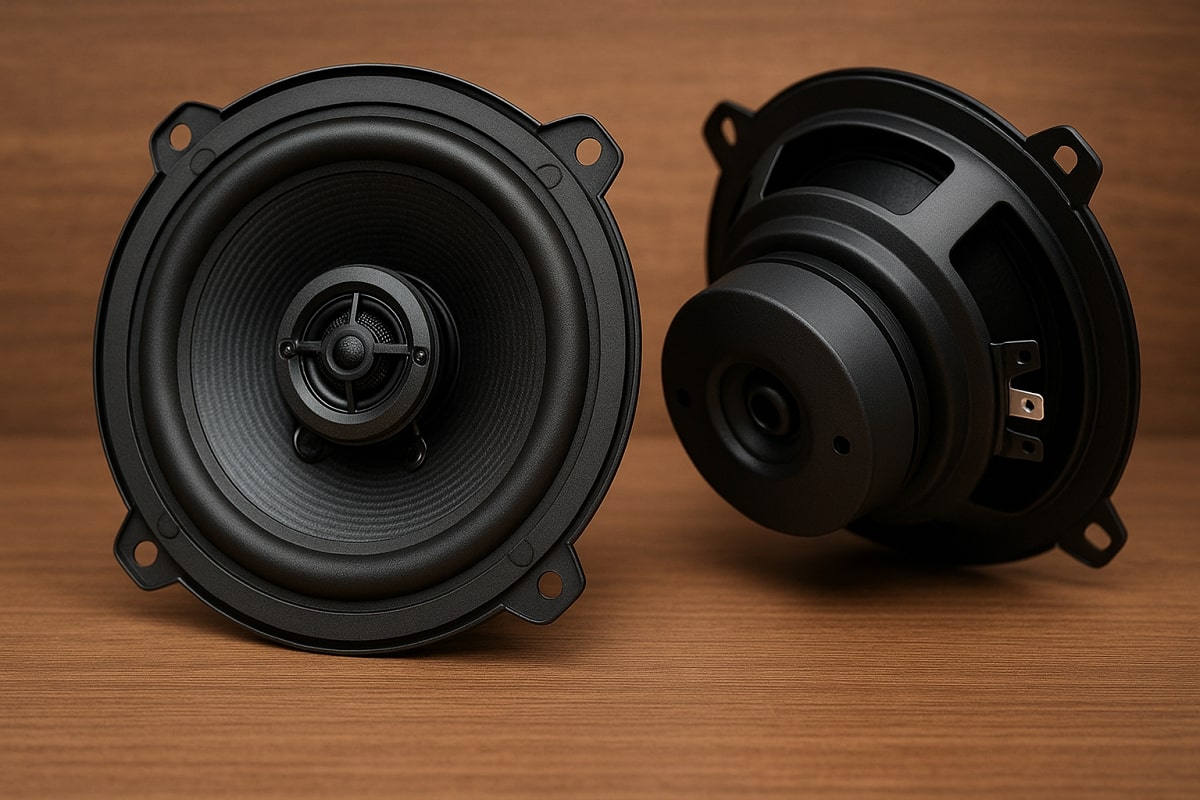

Coaxial car speakers are the most common type of automotive audio speakers that combine multiple speaker elements into a single unit. Unlike component speakers where tweeters, woofers, and midrange drivers are physically separated, coaxial speakers integrate these elements along the same axis (hence “co-axial”), with the tweeter typically mounted in the center of the woofer.
These all-in-one speaker designs offer convenience, easier installation, and cost efficiency compared to component speaker systems. They’re the standard factory-installed speakers in most vehicles and remain the most popular aftermarket speaker upgrade option for car audio enthusiasts seeking improved sound without the complexity of a component system.
Types of Coaxial Car Speakers
2-Way Coaxial Speakers
2-way coaxial speakers are the most basic and common type, featuring two driver elements:
- Woofer: Handles low and mid-range frequencies (typically 50Hz-10kHz)
- Tweeter: Reproduces high frequencies (usually 10kHz-20kHz)
The tweeter is mounted at the center of the woofer cone, and a simple crossover network divides the audio signal between the two drivers. These speakers offer good overall sound quality at an affordable price point, making them popular for basic factory speaker replacements.
3-Way Coaxial Speakers
3-way (or triaxial) speakers add a third driver to the configuration:
- Woofer: Handles lower frequencies (50Hz-1kHz)
- Midrange driver: Reproduces middle frequencies (1kHz-10kHz)
- Tweeter: Produces high frequencies (10kHz-20kHz)
The additional midrange driver improves vocal clarity and overall sound detail. These speakers feature more complex crossover networks to properly route frequencies to each driver. 3-way speakers typically offer better sound quality than 2-way models but at a higher price point.
4-Way Coaxial Speakers
4-way coaxial speakers further divide the frequency spectrum with four separate driver elements:
- Woofer: Reproduces low frequencies (50Hz-500Hz)
- Lower midrange: Handles lower mid frequencies (500Hz-3kHz)
- Upper midrange: Manages upper mid frequencies (3kHz-10kHz)
- Tweeter: Reproduces high frequencies (10kHz-20kHz)
With more specialized drivers handling narrower frequency ranges, 4-way speakers can offer improved sound detail and clarity. They typically feature more sophisticated crossover networks and higher-quality materials than simpler coaxial designs.
5-Way Coaxial Speakers
5-way coaxial speakers represent the most complex coaxial configuration, with five separate driver elements:
- Woofer: Handles the lowest frequencies (50Hz-300Hz)
- Lower midrange: Reproduces lower mid frequencies (300Hz-1.5kHz)
- Midrange: Handles central midrange frequencies (1.5kHz-5kHz)
- Upper midrange/super tweeter: Manages upper mid frequencies (5kHz-15kHz)
- Tweeter: Reproduces the highest frequencies (15kHz-20kHz)
These premium speakers offer the most detailed sound reproduction in a coaxial design, approaching the quality of component systems while maintaining the convenience of a single-unit installation. They typically feature the highest-quality materials and most sophisticated crossover networks among coaxial speakers.
Key Features of Coaxial Car Speakers
Power Handling
Power handling specifications indicate how much power a speaker can safely handle:
- RMS Power: The continuous power a speaker can handle during normal operation
- Peak Power: The maximum power a speaker can handle in short bursts
Higher power handling generally indicates more durable speakers capable of playing louder without distortion, especially when paired with appropriate amplification.
Sensitivity Rating
Sensitivity measures how efficiently a speaker converts power into sound, expressed in decibels (dB). Higher sensitivity ratings (above 90dB) mean the speaker produces more volume with less power, making them ideal for factory head units with limited power output.
Frequency Response
Frequency response indicates the range of sounds a speaker can reproduce, measured in Hertz (Hz). A wider frequency response (e.g., 20Hz-20kHz) generally means the speaker can reproduce more of the audible spectrum, potentially offering fuller sound.
Speaker Materials
The materials used in a coaxial speaker significantly impact its sound quality and durability:
- Woofer Cones: Common materials include polypropylene, paper, woven fabrics, and various composite materials. Stiffer, lighter materials generally produce better sound.
- Surrounds: Rubber surrounds offer the best durability and sound quality, while foam and cloth surrounds are typically found in less expensive models.
- Tweeters: Soft materials like silk and textiles produce smoother high frequencies, while hard materials like metal, ceramics, or graphite offer crisper, more detailed highs.
Impedance
Most car speakers have an impedance of 4 ohms, which is compatible with most car audio systems. Some premium models offer 2 or 3-ohm options for specific applications.
How to Choose the Right Coaxial Speakers
When selecting coaxial speakers for your vehicle, consider:
- Speaker Size: Ensure the speakers fit your vehicle’s factory speaker locations (common sizes include 6.5″, 6″x9″, 5.25″, and 4″).
- Power Compatibility: Match the speakers’ power handling with your head unit or amplifier output.
- Sound Preferences: Consider whether you prefer balanced sound, enhanced bass, or crisp highs.
- Budget: Determine how much you’re willing to invest, as prices range from $30 to $500+ per pair.
- Installation Requirements: Factor in whether you’ll install them yourself or need professional installation.
Benefits of Coaxial Speakers vs. Component Speakers
Advantages of Coaxial Speakers:
- Easier installation: Direct replacements for factory speakers
- Cost-effective: Generally less expensive than component systems
- Space-efficient: All drivers in a single unit
- Simpler wiring: No separate crossover installation required
- Good all-around sound: Balanced performance for casual listeners
Disadvantages of Coaxial Speakers:
- Limited stereo imaging: Cannot optimize tweeter placement
- Potential sound quality limitations: Compromises compared to component systems
- Less customization: Cannot upgrade individual drivers separately
FAQ About Coaxial Car Speakers
What’s the difference between coaxial and component car speakers?
Coaxial speakers combine multiple drivers (woofer, tweeter, etc.) into a single unit, while component systems separate these elements into individual speakers. Component systems typically offer superior sound quality and customization but require more complex installation and higher investment.
How long do coaxial car speakers typically last?
With proper care and moderate use, quality coaxial speakers can last 5-10 years. Factors affecting longevity include power handling, environmental conditions, and how often they’re played at high volumes.
Do I need an amplifier for coaxial speakers?
While coaxial speakers can run directly off most factory head units, adding an external amplifier significantly improves sound quality and volume capabilities. Entry-level coaxial speakers may work fine without an amp, but premium models benefit greatly from proper amplification.
What size coaxial speakers should I get for my car?
The best size depends on your vehicle’s factory speaker locations. Common sizes include 6.5″ for doors, 6″x9″ for rear decks, and 4″ or 5.25″ for dashboards or pillars. Check your vehicle’s specifications or measure existing speakers before purchasing.
Are more expensive coaxial speakers worth the money?
Higher-priced coaxial speakers typically offer better materials, more sophisticated crossover networks, and improved sound quality. The value depends on your audio preferences, vehicle acoustics, and whether the rest of your system can benefit from premium speakers.
Can I mix different brands of coaxial speakers in my car?
While technically possible, mixing speaker brands or models can create sound imbalances due to different sensitivity ratings, frequency responses, and sonic signatures. For the best sound quality and consistency, use matching speakers throughout your vehicle.
